Fence and Razor Wire Solutions

Razor wire :
Razor wire is a mesh of metal strips with sharp edges whose purpose is to prevent passage by humans. Razor wire is much sharper than the standard barbed wire. The multiple blades of a razor wire fence are designed to inflict serious cuts on anyone attempting to climb through and therefore have a strong psychological deterrent effect. In many high-security applications, barbed wire, which could be circumvented quickly by humans without tools, while penetrating razor wire barriers without tools is very slow and difficult, giving security forces more time to respond.

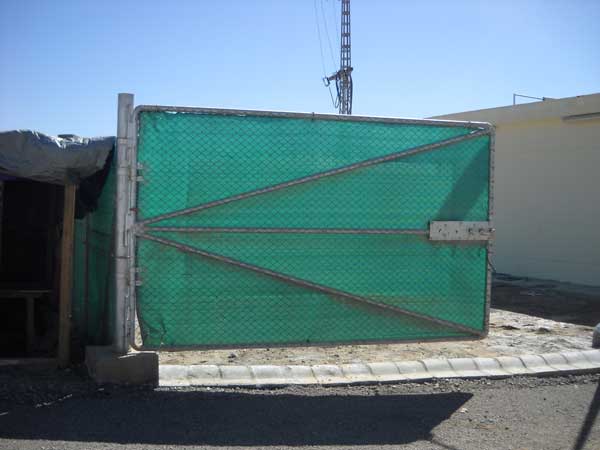

Chain Link Fence :
A chain-link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized or steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other.


CONCERTINA/RAZOR Wire BTO-22 (General Information)
Model: BTO-22
General Characteristics:
Concertina with medium sized blades and high diffusion.
Recommended locations for installation:
For locations with average security requirements, for the control of borders and general use.

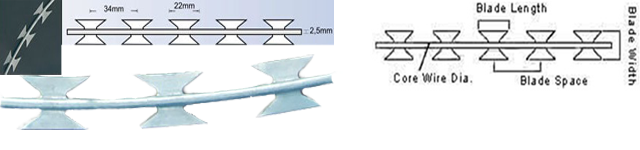

Specification:
Materials: Galvanized steel sheet and wire
Blade Thickness: 0.5mm
Wire diameter: 2.5mm
Razor blade width: 15 mm
Razor blade length: 22 mm
Distance between blades: 34 mm
Ring/Strand stretch spacing: 150~200mm
Outside diameter of roll: 450 mm (18) to 1250mm (49)
