Hollow Steel Security Doors

Our Hollow Steel Doors are design to use in any public and government sectors. These doors are robust and provide protection against intruder and forced entry attempts. Our doors are designed to be installed in new and existing compartments areas to separate different zoning areas. Steel Doors are usually used in public buildings, government complexes and also in residential apartments where threat level is high. Our steel doors come in single and double leaf according to size and type requirements.

Available Size and Type:
Security Level Maximum Door Size Door Type Door Panel Gauge Door Frame Gauge
Basic Level 48"Wx96"H
Single Door
Double Door
16 gauge 14 gauge
Meduim Level 48"Wx96"H
Single Door
Double Door
14 gauge 14 gauge
High Level 48"Wx96"H
Single Door
Double Door
12 gauge 12 gauge
Steel Door Features:
  • 12 to 16-gauge primed galvanized or milled steel door panels according requirement.
  • 12 and 14 gauge primed galvanizedor milled steel frame.
  • Quick Fit frames are ready-to-install into pre-existing door openings.
  • Door thickness 1 ¾ inches (44mm).
  • Reinforced core frame with stiffeners and filled with Rock Wool insulation.
  • Good acoustic and thermal insulation performance.
  • Reinforced at hardware locations.
  • Custom made ball bearing heavy duty hinges.

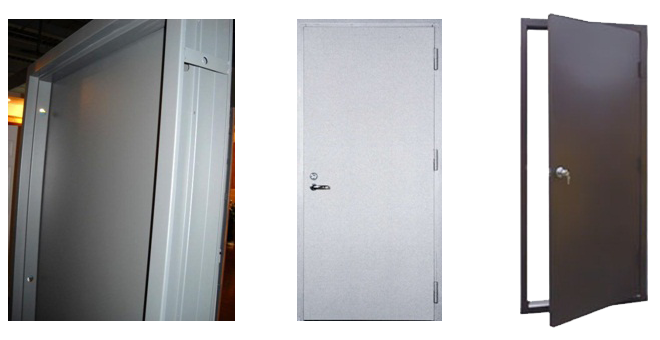

Security Doors (Hollow Steel Doors) Door Panel Construction:

Full Flush Steel Door panel design allows a smooth finish that gives a strong look and feel to the door. The flush door is an ideal match for Commercial and Residential use in almost any application.The door panel is constructed by placing both halves of the door panel together using a 16 gauge welded channel system. The internal core of the door is constructed with steel stiffeners and filled with Rock Wool insulation. Hardware mounting areas are reinforced with additional 14 gauge plates.

Welded Steel Frames (Quick Fit Frames)

Welded Steel Frames are excellent for both residential and commercial use. The welded options allow our doors to be installed in existing construction where a pre-existing opening is already prepared for a door using anchor bolts it also works very well for new construction. The doors can be placed in their openings and the wall can be easily built around the frame.

Pre-install Hardware:

Factory pre-installation or pre-cutfor hardware make it easier for end user. This option is designed to help streamline the process of receiving and installing doors. The contractor saves hours of onsite labor and the costs associated with it.

Door Hardware / Ironmongery:

Almost any type of domestic or commercial grade hardware including electronic lock system can be installed on our doors. We provide Fire Rated and non-Fire rated closing devices and locksets as per requirement. Customers can also provide hardware of their choice in commercial/large quantity orders.

Materials, Workmanship and References:

QUALITY ASSURANCE: Doors and frames confirms to the requirements of ANSI A250.8-1998 (SDI-100).

MATERIALS: The material used in manufacturing of these products and components complies with ANSI/SDI A250.8.Hardware reinforcing on doors and frames complies with ANSI/SDI A250.6. The physical performance levels will be in accordance with ANSI/SDI A250.4.

All steels used to manufacture doors, frames, anchors, and accessories meets at least one or more of the following requirements:

  • Cold rolled steel shall conform to ASTM A1008 and A568.
  • Hot rolled, pickled and oiled steel shall comply with ASTM A1011 and A568.
  • Hot dipped zinc coated steel shall be of the alloyed type and comply with ASTM A924 and A653.
  • Steel Sheet, Electrolytic Zinc-Coated shall conform to ASTM A591.

WORKMANSHIP: Door Panels and Door Frames and Fabrication in accordance with ANSI/SDI A250.8

Factory applied finish meets the performance requirements& acceptance criteria as stated inANSI/SDI A250.3. Design clearancesANSI/NFPA 80.
